Kitty Cat Clutches & Parts

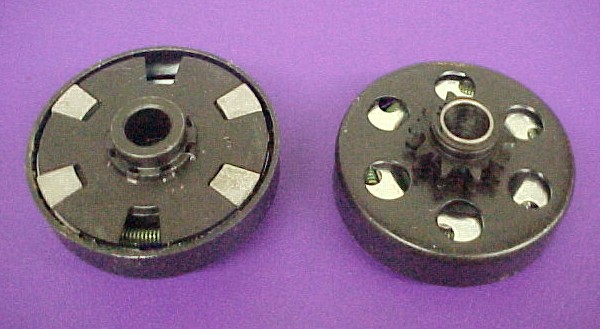

MaxTorque 5/8", #35 (Kitty Cat)

MaxTorque Stock Kitty Cat (Kitty Cat)

Kitty Cat Stock Clutch Spring

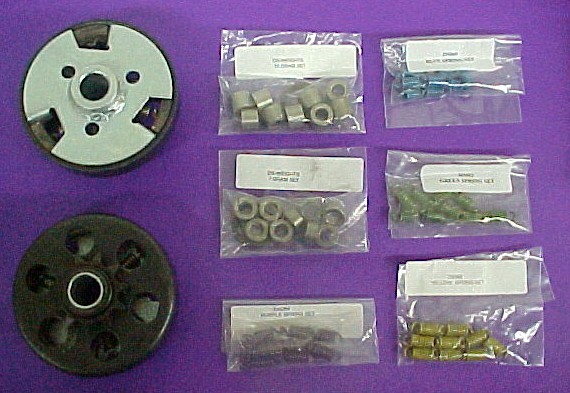

MaxTorque DragginSkin - 5/8", #35 Clutch (Kitty Cat)

  • Weighs only 1.25 lbs.

  • Easy engagement adjustments from 2200-4500 RPM.

  • Comes with 11 tooth #35 sprocket with turned drum.

  • Kit includes additional weights (7g & 10g) and blue, purple, yellow & white springs. (See pic)

  • Click here for DragginSkin details and configurations.

MaxTorque 5/8", #35 Clutch                     $159.00                  SM03-06500

Spring Sets                $7.50
Shoe Sets (3 lined shoes)     $57.95

Click Picture to Enlarge

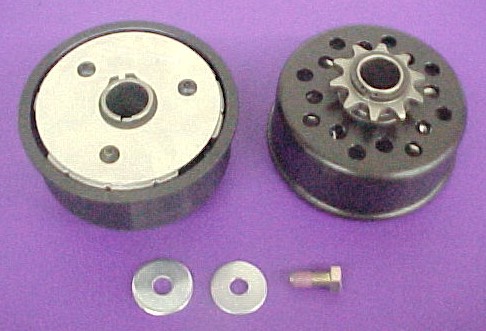

MaxTorque STOCK Kitty Cat Clutch

  • Although MaxTorque had to raise their prices summer 2021, we are proud to keep the same pricing as we've had since 2003!

  • The first listed clutch is an OEM stock clutch for your Kitty Cat provided by the same manufacturer as the original Kitty Cat clutch.

  • Directly from the manufacture and assembled to provide up to a 200 rpm higher engagement than an 'off-the-shelf OEM stock clutch. This provides your driver with much better performance off the starting line.

  • Used for stock class racing.

  • The second clutch below is the same OEM clutch except you can choose a different sprocket.  We are the only vendor that will custom configure your clutch with what you want rather than making your buy extra gears.

  • The fiber washer is used inside the clutch and does two things.  It keeps oil from getting from the hub onto the shoes and it also acts as a spacer to keep the inside of the drum from hitting the silver plate (dust cover).

  • The 'Clutch Bolt Cup Washer" is a specially shaped washer that holds the clutch in place and prevents floating on the shaft.

  • If you've noticed the clutch engagement being low or the engine having to lug to get the Kitty Cat moving, you might just need to replace the spring.  As the spring heats and cools it looses its strength and the weaker the spring, the lower the engagement.  New the clutch should engage at 2000 rpm, but as the clutch gets older it can engage as low as 1400 rpm, which is way too low.

Stock Kitty Cat Clutch

 (List is $108.99)

 $49.95

0302-086

OEM Kitty Cat Clutch w/Sprocket Upgrade      $60.00

MT-5835xxBLU
Kitty Cat Drum and Sprockets      $32.00

MT-Dr-Sp58

Kitty Cat 5/8" fiber washer

 (List is $.030)

 $0.20

A10-0011

Kitty Cat Clutch Bolt

 (List is $0.99)

 $0.90

8004-037

Kitty Cat Clutch Bolt Lock Washer

 (List is $0.31)

 $0.30

8051-212

Kitty Cat Clutch Bolt Cup Washer

 (List is $7.03)

 $6.99

0123-765

MaxTorque Stock Clutch Spring (Blue - +/- 2000rpm engagement)

 (List is $10.23)

 $8.00

MT-BLUE

MaxTorque Performance Clutch Spring (Silver - +/- 2400 rpm engagement)

 (List is $10.23)

 $8.00

MT-SILVER

MaxTorque Race Clutch Spring (Black - +/- 2800 rpm engagement)

 (List is $10.23)

 $8.00

MT-BLACK



MaxTorque PERFORMANCE Kitty Cat Clutch (2400 rpm engagement)

  • THIS IS AN EXCLUSIVE OLSON BROTHERS CLUTCH!!!

  • This is an OEM stock replacement clutch that's been modified for your Kitty Cat for better performance and uses the same brake band.

  • This clutch is stock appearing but has an upgraded performance spring.

  • Excellent clutch for back-yard recreational riding.

  • At Olson Brothers Dist, we want you to get what you need for the best price.  That's why we are the only supplier that offers you a choice in sprocket sizes for your 'performance' clutch without making you buy them separately.  11 tooth is stock and for every tooth increase on the clutch it's approximately equivalent to a four teeth reduction on the driven sprocket. In other words, a 13 tooth clutch sprocket (2 sizes larger than stock) would be similar to changing the driven sprocket from the stock 42 tooth to a 34 tooth (8 tooth reduction).

  • Note: To use a 14 tooth sprocket you'd need the governor bypassed and running on flat smooth terrain.  To use a 15 tooth sprocket you'd need the governor bypassed and running on ice or a more frictionless surface.
Kitty Cat 'PERFORMANCE' Clutch                     $64.00

Click Picture to Enlarge



MaxTorque RACE Kitty Cat Clutch (2800 rpm engagement)

  • THIS IS AN EXCLUSIVE OLSON BROTHERS CLUTCH!!!

  • This is an OEM stock replacement clutch that's been modified for your Kitty Cat for ultimate performance and uses same brake band.

  • This clutch is stock appearing but has an upgraded performance spring.

  • Excellent clutch for Improved Stock racing or for flat terrain with experience riders. Not recommended for beginner riders.

  • At Olson Brothers Dist, we want you to get what you need for the best price.  That's why we are the only supplier that offers you a choice in sprocket sizes for your 'race' clutch without making you buy them separately.  11 tooth is stock and for every tooth increase on the clutch it's approximately equivalent to a four teeth reduction on the driven sprocket. In other words, a 13 tooth clutch sprocket (2 sizes larger than stock) would be similar to changing the driven sprocket from the stock 42 tooth to a 34 tooth (8 tooth reduction).

Kitty Cat "RACE" Clutch                     $64.00

Click Picture to Enlarge



MaxTorque Heavy Duty Kitty Cat Clutch

  • This clutch is configured to engage between 2200 and 2400 rpm, but when the clutch engages it will lock up harder than stock and hold it tight. It's intended to be used in rough terrain or areas were power is desired over performance.
Kitty Cat Heavy Duty Clutch       $64.00

Click Picture to Enlarge



MaxTorque Drum & Sprocket Assembly

  • These assemblies replace the drum and sprocket on your existing MaxTorque clutch. If you're looking to change speed and performance by changing the gear ratio, this is one way to do that. What you will receive is the black drum with the sprocket of your choice already installed on the drum.
Kitty Cat Drum & Sprocket       $32.00

Click Picture to Enlarge



Predator 79cc Clutch

  • This clutch is configured to engage at approximate 2300 rpm and with the heavier shoes it will lock up harder than stock or chinese clutches.
  • We've tried several configurations of clutches and this seems to be the best fit for the Predator 79cc engine.

Predator 79cc Clutch

  • We have tested several clutch configurations and this clutch setup seems to work the best and we've receive the most positive feedback from.
  • The clutch wil engage at approximately 2400 rpm and with heavier shoes it keeps the extra engine torque from slipping the cltuch like the OEM clutch or Chinese clutches do.
 $60.00

PRED-CLUTCH

Space Chain - #35, 40" Long w/master

  • You will need about 35" of chain, so this length will work no matter where you place your engine. You may need to resize your chain slightly to fit.
  • Space chain is roughly 8 times stronger than standard #35 chain and this is needed with the extra torque of the Predator engine. Standard will work, but will wear much quicker and increases the likelihood that when the chain does wear it will ruin the sprockets.
 $11.95

PRED-CHAIN

Silver Pro #35 Chain, 40" w/master

  • This is another great option for chain. Silver Pro is another type of space chain manufactured by another company. The break strength, wear resistance is the same as space chain, but this chain runs more smooth and true right out of the box with less link binding.
 $22.95

SM04-35SP1

Click Picture to Enlarge



Kitty Cat Stock Clutch Spring (Kitty Cat)

  • This is the blue tinted clutch spring with an approximate engagement of 2000 rpm.

  • Over time the heating and cooling of the clutch and spring will weaken the spring and thus lower your clutch engagement.  Your engine's peak torque is typically in the mid 3000 rpm range.  The further away your engagement is from the peak torque the more your engine has to work to get up to speed.  Therefore, at the 2000 rpm engagement your engine accelerates with a small amount of hesitation or "lugging".  But the lower that engagement gets the more the engine "lugs" and has to work to get even back to the normal 2000 rpm engagement.  At some point the Kitty Cat may not even get itself going without a push.  Changing the used spring to a new OEM stock spring will get your clutch back to optimal stock engagement.

Kitty Cat Stock Clutch Spring              $8.00               SM03-6306

Click Picture to Enlarge



MaxTorque Bushings  (Kitty Cats)

  • These bushings are OEM and replace the bushing inside the sprocket of the drum & sprocket.

  • 5/8" fits all MaxTorque Kitty Cat snowmobile clutches.

MaxTorque 5/8" Sprocket Bushing                    $3.99                     SM03-6303

Click Picture to Enlarge
